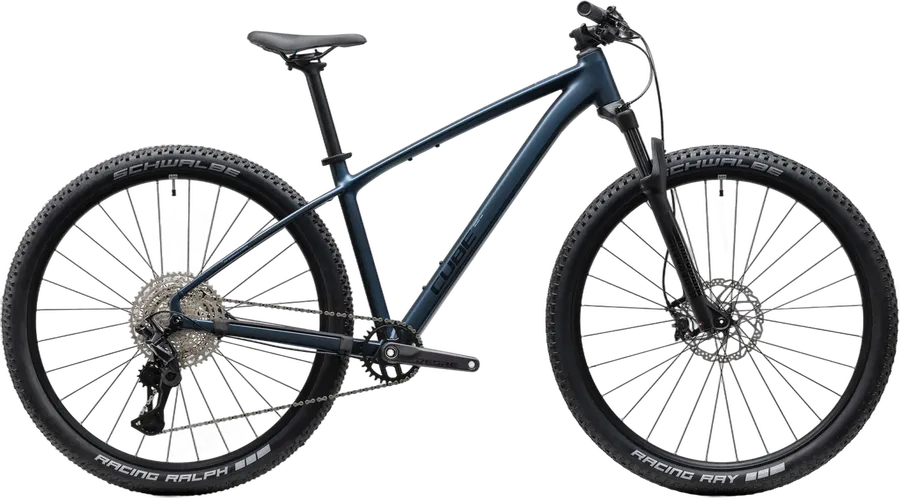

Cube Reaction SLX 2027
MTBe-bike
- Year
- 2027
- Parts listed
- 20
- Sheet
- SPK-1530
Click a part to see its size and where to buy it.
Full parts list
Frame and standards
- 01FrameAluminium LiteAluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
- 02Bottom bracketBSA 68 mm (threaded)Prowheel BSA PW-MB68Sigma Sports bike-components Bike24
- 03HeadsetZS56 | ZS56Sup. ZS56 — Inf. ZS56 · Acros AIF-557, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero Stack 1 1/2" (ZS 56mm)Sigma Sports bike-components Bike24
- 04ForkRockShox Recon Silver RL AirRockShox Recon Silver RL Air, 100mm, OneLocSigma Sports bike-components Bike24
- 05SeatpostØ30.9 mmØ30.9mm · CUBE Performance Post, 30.9mmSigma Sports bike-components Bike24
- 06Front thru axle15 × 110 mm15x110Sigma Sports bike-components Bike24
- 07Rear thru axle12 × 148 mm12x148Sigma Sports bike-components Bike24
Drivetrain
- 08ChainKMC X12Sigma Sports bike-components Bike24
- 09CassetteShimano CS-M6100Shimano Deore CS-M6100, 10-51TSigma Sports bike-components Bike24
- 10Rear derailleurShimano RD-M8200Shimano XT RD-M8200-SGS, ShadowPlus, 12-SpeedSigma Sports bike-components Bike24
- 11CranksetShimano FC-M6200Shimano Deore FC-M6200, 32T, BoostSigma Sports bike-components Bike24
- 12ShiftersShimano SL-M8200Shimano XT SL-M8200-IR, Direct AttachSigma Sports bike-components Bike24
Brakes
- 13BrakesShimano BR-M8100Shimano XT BR-M8100, Hydr. Disc Brake, PM/FM (180/160)Sigma Sports bike-components Bike24
Wheels and tyres
- 14TyresSchwalbe Racing RaySchwalbe Racing Ray, Addix Performance, Kevlar, 2.25Sigma Sports bike-components Bike24
- 15Wheels / rimsNewmen Performance 30 light/lightNewmen Performance 30 light/light, 28/28 Spokes, 15x110mm/12x148mm, Tubeless ReadySigma Sports bike-components Bike24
Cockpit
- 16HandlebarCUBE Rise Trail BarCUBE Rise Trail Bar, 680mmSigma Sports bike-components Bike24
- 17StemCUBE Performance Stem SLXCUBE Performance Stem SLX, FPI-Link, 31.8mmSigma Sports bike-components Bike24
- 18Grips / bar tapeACID React ProSigma Sports bike-components Bike24
- 19SaddleACID Venec LiteSigma Sports bike-components Bike24
- 20PedalsACID PP MTBSigma Sports bike-components Bike24
Not listed: Seat clamp, Derailleur hanger.
Parts of the original build, with their exact model: check the bike in case it was modified.Source ↗
