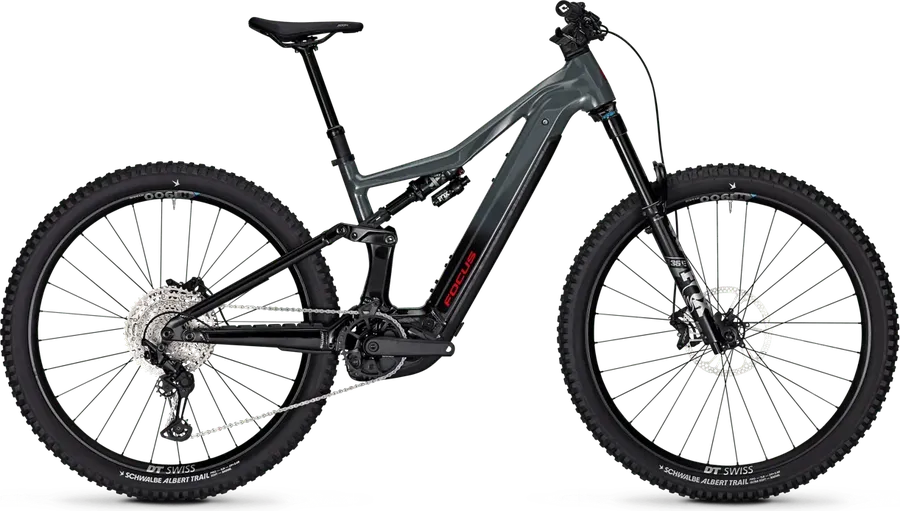

Focus JAM² 6.9 2026
MTBfull suspension
- Year
- 2026
- Parts listed
- 20
- Sheet
- SPK-2865
Click a part to see its size and where to buy it.
Full parts list
Frame and standards
- 01Frame7005 hydroformed aluminium7005 hydroformed aluminium, 150 mm F.O.L.D. kinematics, 148x12 mm thru axle, Post Mount 180 mm
- 02HeadsetZS56 | ZS66Sup. ZS56 — Inf. ZS66 · ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. IntegratedSigma Sports bike-components Bike24
- 03ForkFox 36 Performance EliteFox 36 Performance Elite, Grip X2, 160 mm
- 04Rear shockFox Float X PerformanceFox Float X Performance, 150 mm
- 05SeatpostØ34.9 mmØ34.9mm · Post Moderne DP-212, S / M /L / XL: 125 / 170 / 170 / 200 mm, 34,9 mmSigma Sports bike-components Bike24
- 06Rear thru axle12 × 148 mm12x148Sigma Sports bike-components Bike24
Drivetrain
- 07ChainShimano CN-M6100Sigma Sports bike-components Bike24
- 08CassetteShimano CS-M6100Shimano CS-M6100, 10-51TSigma Sports bike-components Bike24
- 09Rear derailleurShimano Deore XTShimano Deore XT, 12-speedSigma Sports bike-components Bike24
- 10CranksetSamoxSamox, 165 mmSigma Sports bike-components Bike24
- 11Chainring(s)SamoxSamox, 36 TSigma Sports bike-components Bike24
- 12ShiftersShimano DeoreSigma Sports bike-components Bike24
Brakes
- 13Brake rotorsTRP RC03ETRP RC03E, front: 203 mm / rear: 203 mmSigma Sports bike-components Bike24
Wheels and tyres
- 14Wheels / rimsDT Swiss H 1900DT Swiss H 1900, alloy, 29Sigma Sports bike-components Bike24
Cockpit
- 15HandlebarAlloyAlloy, width: 800 mm, rise: 30 mmSigma Sports bike-components Bike24
- 16StemFOCUS C.I.S. 2.0FOCUS C.I.S. 2.0, 40 mmSigma Sports bike-components Bike24
- 17Grips / bar tapeODI Elite ProSigma Sports bike-components Bike24
- 18Saddlefi'zi:k Aidon X5Sigma Sports bike-components Bike24
E-bike system
- 19Motor (e-bike)Bosch Performance Line CXBosch Performance Line CX, 85 NM, 120 NM update via Flow AppSigma Sports bike-components Bike24
- 20Battery (e-bike)Bosch PowerTube Li-Ion (600 Wh)Bosch PowerTube Li-Ion (800 Wh)Sigma Sports bike-components Bike24
Not listed: Bottom bracket, Frame pivot bearings, Seat clamp, Derailleur hanger.
Parts of the original build, with their exact model: check the bike in case it was modified.Source ↗
