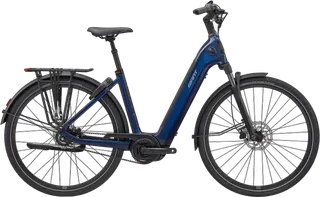

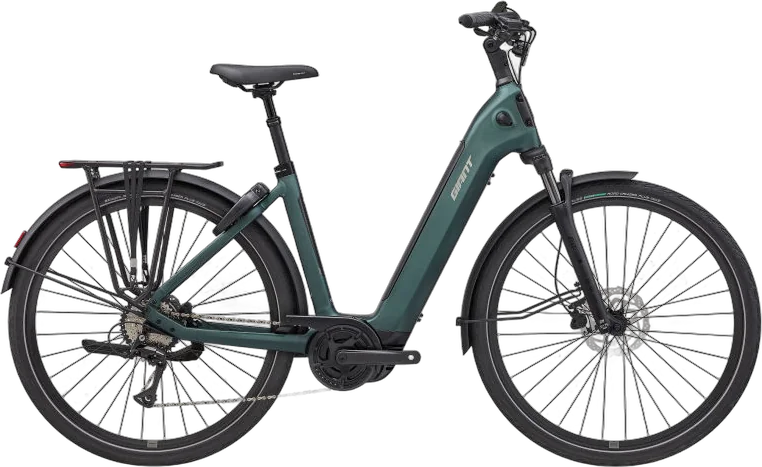

Giant NewTour E+ 3 2027
city
- Year
- 2027
- Parts listed
- 20
- Sheet
- SPK-1392
Click a part to see its size and where to buy it.
Full parts list
Frame and standards
- 01FrameALUXX aluminium Battery IntegratedALUXX aluminium Battery Integrated, low step through design
- 02ForkSR Suntour Mobie 32 63mm travelSigma Sports bike-components Bike24
- 03SeatpostSuspension 30.9x300mm
Drivetrain
- 04ChainKMC e8 SportKMC e8 Sport, NP/BK, e-bike optimizedSigma Sports bike-components Bike24
- 05CassetteShimano 11-40TShimano 11-40T, 8-speedSigma Sports bike-components Bike24
- 06Rear derailleurShimano AceraShimano Acera, 8-speedSigma Sports bike-components Bike24
- 07Crankset38T38T, Forged alumium crank arms
- 08ShiftersGiant RideControl Dash 2Giant RideControl Dash 2, Smart Assist automatic mode, 5 support levelsSigma Sports bike-components Bike24
Brakes
- 09BrakesTektro HD-M281Tektro HD-M281, hydraulic disc, 180mm [F] 160mm [R]Sigma Sports bike-components Bike24
Wheels and tyres
- 10TyresSchwalbe Road Cruiser PlusSchwalbe Road Cruiser Plus, 622x50 Wire Bead w/ reflective stripeSigma Sports bike-components Bike24
- 11Wheels / rimsGiant Double Wall Aluminum 622x21Sigma Sports bike-components Bike24
- 12HubsShimano HB-QC300Shimano HB-QC300 [F] Shimano FH-QC300-HM [R]Sigma Sports bike-components Bike24
Cockpit
- 13HandlebarAluminiumAluminium, 30° back sweep, 31.8x660 mm
- 14StemAluminum angle adjustable stemSigma Sports bike-components Bike24
- 15Grips / bar tapeComfort Ergo Microtech PlusSigma Sports bike-components Bike24
- 16SaddleRoyal Essenza PlusSigma Sports bike-components Bike24
- 17PedalsAnti-slip PlatformSigma Sports bike-components Bike24
E-bike system
- 18Motor (e-bike)Giant SyncDrive Core2 55NmGiant SyncDrive Core2 55Nm, PedalPlus 6-Sensor technologySigma Sports bike-components Bike24
- 19Battery (e-bike)Giant EnergyPak 500WhSigma Sports bike-components Bike24
- 20Display / remote (e-bike)Giant RideControl Dash 2Giant RideControl Dash 2, full color LCD displaySigma Sports bike-components Bike24
Not listed: Bottom bracket, Headset, Seat clamp, Derailleur hanger.
Parts of the original build, with their exact model: check the bike in case it was modified.Source ↗
