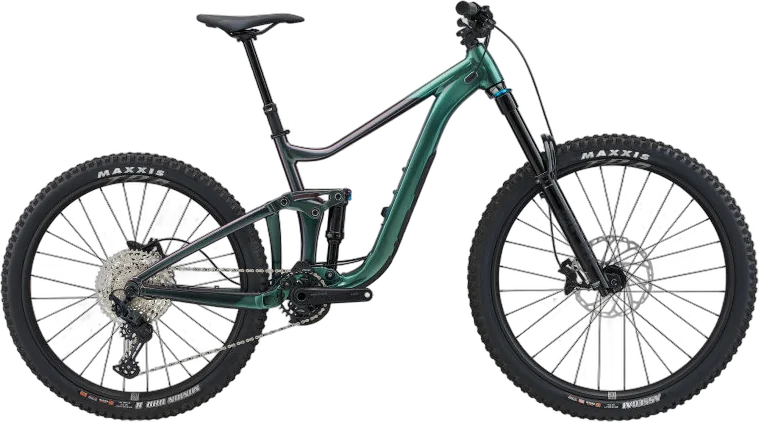

Giant Reign 2 2025

MTBfull suspension

Click a part to see its size and where to buy it.

Full parts list

01FrameALUXX SL-grade aluminum front and rear trianglesALUXX SL-grade aluminum front and rear triangles, 160mm Maestro suspension, flip chip, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3, integrated down tube storage
02Bottom bracketPraxis, press fit
03ForkFox 38 RhythmFox 38 Rhythm, 170mm, GRIP damper, 15x110 Kabolt X, 44mm offsetSigma Sports bike-components Bike24
04Rear shock205 × 62.5 mmFox Float Performance, 205/62.5, custom tuned for GiantSigma Sports bike-components Bike24
05SeatpostContact Switch AT dropperContact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm
06Rear thru axle12 × 148 mm12x148Sigma Sports bike-components Bike24

07ChainKMC X-12Sigma Sports bike-components Bike24
08CassetteShimano Deore M6100Shimano Deore M6100, 10x51Sigma Sports bike-components Bike24
09Rear derailleurShimano RD-M7100Shimano SLX RD-M7100Sigma Sports bike-components Bike24
10CranksetPraxis Cadet HD M24Praxis Cadet HD M24, 32t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mmSigma Sports bike-components Bike24
11ShiftersShimano SL-M6100Shimano Deore SL-M6100, 1x12Sigma Sports bike-components Bike24

12BrakesShimano BR-MT520Shimano Deore BR-MT520, hydraulic, Shimano RT-66 rotors [F]220mm, [R]200mmSigma Sports bike-components Bike24

13Tyres[F] Maxxis Assegai 29x2.5 WT[F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 27.5x2.4 WT, 3C MaxxTerra, DD, TR tubelessSigma Sports bike-components Bike24
14Wheels / rimsGiant TRA 2 wheelsetGiant TRA 2 wheelset, 6061 alloy, hookless, 30mm inner width, 40mm outer width, 21mm height, Wide Guard TechnologySigma Sports bike-components Bike24
15Hubs[F] Giant MTB alloy[F] Giant MTB alloy, six-bolt, [R] Giant MTB alloy, 72 POE (Points of Engagement), six-bolt, MicroSpline driver bodySigma Sports bike-components Bike24

16HandlebarGiant Contact TR35Giant Contact TR35, 800x35mm, 35mm riseSigma Sports bike-components Bike24
17StemGiant Contact SL 35 S:40mmGiant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:40mmSigma Sports bike-components Bike24
18Grips / bar tapeGiant Tactal Pro SingleSigma Sports bike-components Bike24
19SaddleGiant RomeroSigma Sports bike-components Bike24

Not listed: Headset, Frame pivot bearings, Seat clamp, Derailleur hanger.

Parts of the original build, with their exact model: check the bike in case it was modified.Source ↗
