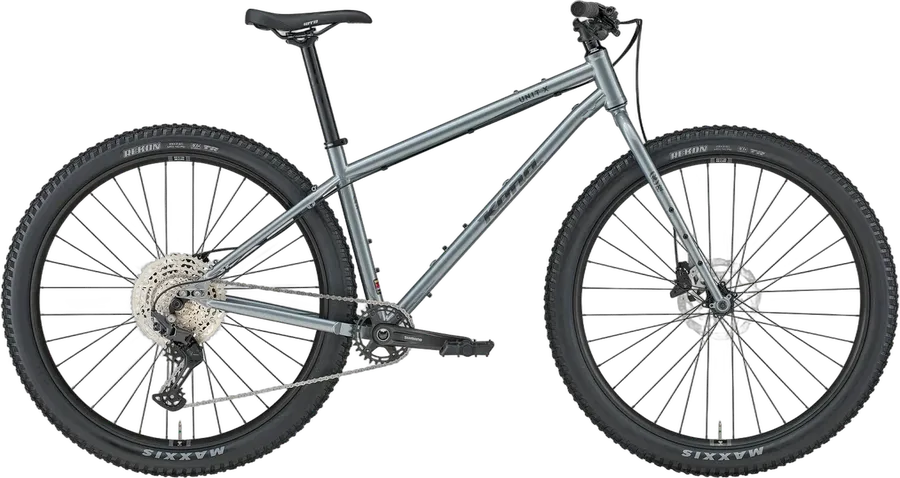

Kona Unit X 2027
MTBOther years2026
- Year
- 2027
- Parts listed
- 21
- Sheet
- SPK-3187
Click a part to see its size and where to buy it.
Full parts list
Frame and standards
- 01FrameReynolds 520 Butted Cromoly
- 02Bottom bracketBSA 73 mm (threaded)BSA 73mm (fileté) · Shimano BSA 73mmSigma Sports bike-components Bike24
- 03HeadsetZS44 | ZS44FSA No.10 ZS44/ZS44 · Sup. ZS44 — Inf. ZS44Sigma Sports bike-components Bike24
- 04ForkKona Plus Fork 110mm spacing
- 05SeatpostØ31.6 mmØ31.6mm · Kona Thumb w/Offset 31.6mm / S-M 350mm / L-XL 375mmSigma Sports bike-components Bike24
- 06Seat clampØ34.9 mmØ34.9mmSigma Sports bike-components Bike24
- 07Front thru axle15 × 110 mmFormula 15x110mmSigma Sports bike-components Bike24
- 08Rear thru axle12 × 148 mmFormula 12x148mm MSSigma Sports bike-components Bike24
Drivetrain
- 09ChainShimano Deore 12spdSigma Sports bike-components Bike24
- 10CassetteShimano Deore 10-51t 12spdSigma Sports bike-components Bike24
- 11Rear derailleurShimano DeoreSigma Sports bike-components Bike24
- 12CranksetShimano Deore 12spd 32t / S 170mm / M-XL 175mmSigma Sports bike-components Bike24
- 13ShiftersShimano Deore 12spdSigma Sports bike-components Bike24
Brakes
- 14BrakesShimano MT410 HydraulicSigma Sports bike-components Bike24
Wheels and tyres
- 15TyresMaxxis Rekon TR 29x2.6Sigma Sports bike-components Bike24
- 16HubsFormula 15x110mmSigma Sports bike-components Bike24
Cockpit
- 17HandlebarKona XC/BC Riser / Width 750mmSigma Sports bike-components Bike24
- 18StemKona XC/BC / Length S-M 50mm / M-L 60mmSigma Sports bike-components Bike24
- 19Grips / bar tapeKona Key Grip Lock-onSigma Sports bike-components Bike24
- 20SaddleWTB Volt MediumSigma Sports bike-components Bike24
- 21PedalsKona JS2Sigma Sports bike-components Bike24
Not listed: Derailleur hanger.
Parts of the original build, with their exact model: check the bike in case it was modified.Source ↗
