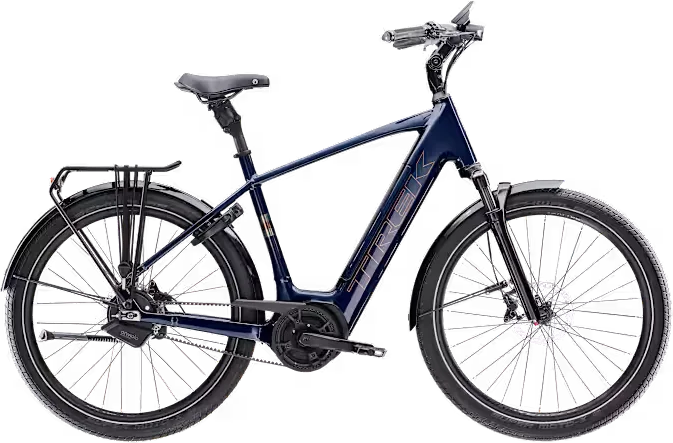

Trek District+ 5 2024

ciudad

Haz clic en una pieza para ver su medida y dónde comprarla.

Lista completa de piezas

01CuadroHigh-performance hydroformed alloyHigh-performance hydroformed alloy, Removable Integrated Battery, internal cable routing, Motor Armor, post-mount disc
02Juego de direcciónStandardRoulements : Headset bearing 1.5'' (51mmX40mmX6.5mm) 36 degree
03HorquillaSR Suntour Mobie 34SR Suntour Mobie 34, 27.5'', air spring, rebound and compression adjust, Post Mount Disc, tapered alloy steerer, 100x15mm thru axle, 60mm travel. OLD: 100mm, 15mm Thru Axle, Gloss Black. With Suntour 15QLC32 Thru Axle (Ø15mm, O.L.D.: 100mm). Suntour Axle P/N: FKA069 -25
04Tija de sillínØ31,6 mmØ31.6mm · Ergotec Suspension Seatpost, 350mm x 31.6mm. 30-60mm offset. Double Bolt. Rail compatibility: 7mm. 27mm Travel, with Coil spring for 90 - 110kg. Aluminum AL7075 T6. Weight: 612gram. Sand Blasted BlackAlltricks bike-components Bike24
05Abrazadera de sillínØ36,4 mmØ36.4mm · Bontrager Seatpost Collar 36.4 BlackAlltricks bike-components Bike24
06Patilla de cambioTrek Verve+/District+Trek Verve+/District+, Diamant Beryll/Mandara MY23 RIB Chaintensioner, Non Drive Side. Black

07BielasProwheel Crankarms for Bosch Gen3 MotorProwheel Crankarms for Bosch Gen3 Motor, 175mm, BlackAlltricks bike-components Bike24

08Discos de frenoShimano SM-RT30Shimano Rotor. Item Number: SM-RT30-M, 180mm, Center Lock, For Resin Pad only. (Visit si.shimano.com for compatibility, manuals and exploded views)Alltricks bike-components Bike24

09NeumáticosSchwalbe Super Moto-XSchwalbe Super Moto-X, 62-584 (27.5x2.4), Green Guard, Black, w/ Reflective Stripe. Schwalbe p/n 10101112Alltricks bike-components Bike24
10Ruedas / llantasBontrager Kovee TLR Disc RimBontrager Kovee TLR Disc Rim, 27.5 32h, Presta, BlackAlltricks bike-components Bike24
11BujesFormula CL-81 Front HubFormula CL-81 Front Hub, 32h 100x15mm Centerlock, BlackAlltricks bike-components Bike24

12ManillarLee Chi HandlebarLee Chi Handlebar, 6061 Aluminum, 31.8mm Clamp, 25mm Rise, 44 Degree Backsweep, 630mm Wide, Anodized BlackAlltricks bike-components Bike24
13PotenciaBontrager Stem 110mmBontrager Stem 110mm, Adjustable, BlackAlltricks bike-components Bike24
14Puños / cinta de manillarBontrager Satellite EliteBontrager Satellite Elite, 130/130mmAlltricks bike-components Bike24
15SillínSelle Royal Relaxed Unisex Saddle. With 7mm Steel Black Rail. Gel Cover. 220mm WidthSelle Royal Relaxed Unisex Saddle. With 7mm Steel Black Rail. Gel Cover. 220mm Width, 255mm Length. With E-Grip Rear Handle. BlackAlltricks bike-components Bike24
16PedalesPedal Bontrager City. BlackAlltricks bike-components Bike24

17Motor (eléctrica)Bosch Performance LineBosch Performance Line, Smart System (BES3) Drive Unit. 25km/h / 20mph. 75Nm. BOSCH P/N: EB11.100.00*Alltricks bike-components Bike24

No registrado: Pedalier.

Piezas del montaje original, con su modelo exacto: revisa la bici por si ha sido modificada.Fuente ↗

Manuales y esquemas disponibles en la página del fabricante.
