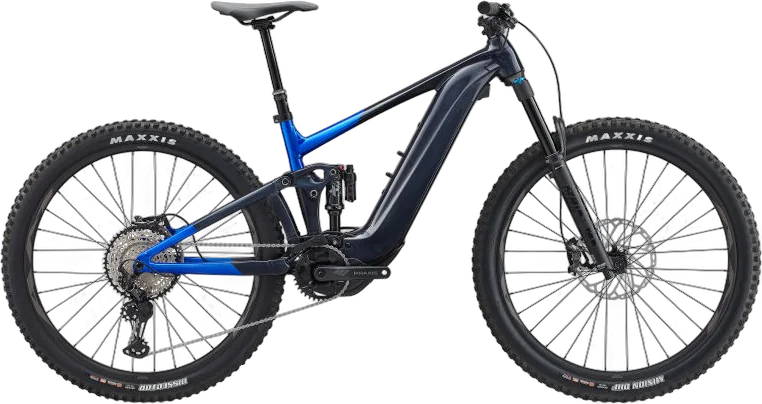

Giant Trance X E+ 1 2023

MTBbiammortizzata

Clicca su un ricambio per vedere la misura e dove comprarlo.

Distinta completa

01TelaioALUXX SL-grade AluminumALUXX SL-grade Aluminum, Advanced Forged Composite linkage, 140mm Maestro Suspension System, 'Boost' 148x12 UDH rear axle, Giant EnergyPak Plus Range Extender Compatible
02ForcellaFox 36 Float Performance E-TunedFox 36 Float Performance E-Tuned, 29er, 150mm travel, 44mm offset, Grip 3-position Micro Adjust damper, Kabolt-X 110
03Ammortizzatore posteriore185 × 52,5 mm Trunnion185 × 52.5 mm · Fox Float X Performance, EVOL Large Volume sleeve, 3-Pos Lever, 185x52.5mm Trunnion mount, recommended sag: 30%Alltricks bike-components Bike24
04ReggisellaTranz-X Rad+ dropperTranz-X Rad+ dropper, 30,9mm, 30mm travel adjustable (S:120-150mm, M:140-170mm, L/XL:170-200mm)

05CatenaKMC e.12 TurboKMC e.12 Turbo, EcoProteq, e-bike optimizedAlltricks bike-components Bike24
06CassettaShimano CS-M7100Shimano CS-M7100-12, 10-51T, 12-speedAlltricks bike-components Bike24
07Deragliatore posterioreShimano Deore XTShimano Deore XT, 12-speed, Shadow+Alltricks bike-components Bike24
08Deragliatore anterioreMRP HD2 co-moulded chain guideAlltricks bike-components Bike24
09GuarnituraPraxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (Q-factor=168Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (Q-factor=168, S:160, M/L:165, XL:170)Alltricks bike-components Bike24
10Comandi cambioGiant RideControl Ergo3Giant RideControl Ergo3, grip integrated remoteAlltricks bike-components Bike24

11FreniShimano BR-M8120Shimano Deore XT, BR-M8120, 4-piston, hydraulic disc, 220mm [F], 203mm [R]Alltricks bike-components Bike24

12PneumaticiMaxxis Minion DHF 29x2.6 foldableMaxxis Minion DHF 29x2.6 foldable, Tubeless, EXO+, 3C MaxxTerra [F]Maxxis Dissector 29x2.6 Foldable, Tubeless, EXO+, 3C MaxxTerra [R]Alltricks bike-components Bike24
13Ruote / cerchiGiant AM30Giant AM30, Tubeless ready, 30mm inner width, 29Alltricks bike-components Bike24
14MozziShimano MT410 BoostShimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axleAlltricks bike-components Bike24

15ManubrioGiant Contact 35 TrailGiant Contact 35 Trail, 35x780mmAlltricks bike-components Bike24
16Attacco manubrioGiant Contact SL 35Alltricks bike-components Bike24
17Manopole / nastro manubrioGiant Tactal Pro-EGiant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL)Alltricks bike-components Bike24
18SellaGiant Romero EAlltricks bike-components Bike24
19PedaliFlat pedalAlltricks bike-components Bike24

20Motore (e-bike)SyncDrive Pro 2SyncDrive Pro 2, 85Nm, powered by YamahaAlltricks bike-components Bike24
21Display / comando (e-bike)Giant RideControl GOGiant RideControl GO, frame integrated LED console Optional wireless ANT+ displayAlltricks bike-components Bike24

Non censito: Movimento centrale, Serie sterzo, Cuscinetti dei pivot del telaio, Collarino reggisella, Forcellino cambio.

Componenti del montaggio originale, con il modello esatto: controlla la bici nel caso sia stata modificata.Fonte ↗
