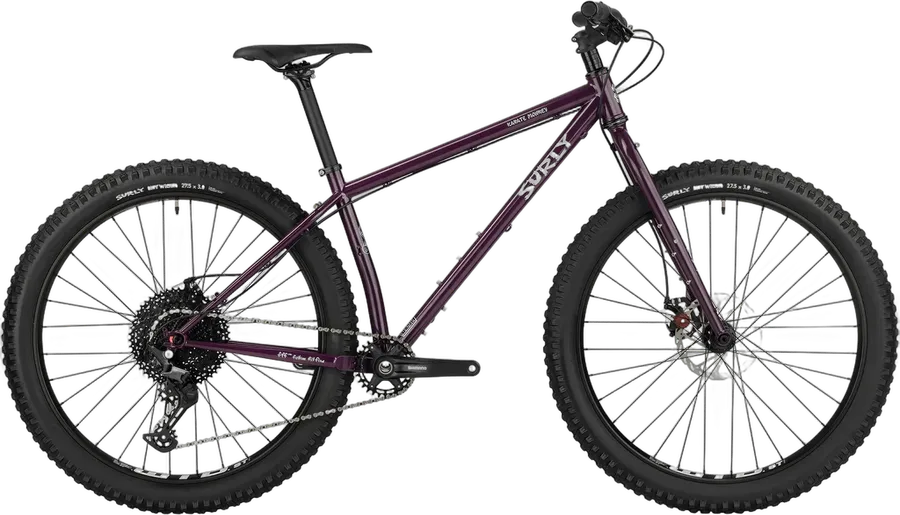

Surly Karate Monkey 2026

MTB

Clicca su un ricambio per vedere la misura e dove comprarlo.

Distinta completa

01Telaio4130 Chromoly4130 Chromoly, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, ED coated
02Movimento centraleBSA 73 mm (filettato)BSA 73mm (fileté) · 73mm threaded (1.37" x 24TPI)Alltricks bike-components Bike24
03Serie sterzoZS44 | EC44ZS44/28.6 | EC44/30 · Sup. ZS44 — Inf. EC44 · Haut : ZS44/28.6 · Bas : EC44/30Alltricks bike-components Bike24
04Forcella4130 ChromolyA2C 483mm · déport 47mm · pivot Ø28.6mm (1-1/8") · 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
05ReggisellaØ30,9 mmØ30.9mmAlltricks bike-components Bike24
06Collarino reggisellaØ33,1 mmØ33.1mmAlltricks bike-components Bike24
07Perno passante anteriore15 × 110 mm15x110Alltricks bike-components Bike24
08Perno passante posteriore12 × 142 mm12x142 · 12 x 142mm or 12 x 148mm (Surly axle included) · Écartement : "Gnot-Boost" 145mmAlltricks bike-components Bike24

09CatenaKMC X12 Anti-RustAlltricks bike-components Bike24
10CassettaOE 12-spdOE 12-spd, 11-51tAlltricks bike-components Bike24
11Deragliatore posterioreShimano Deore 6100 SGSAlltricks bike-components Bike24
12GuarnituraShimano Deore MT510Shimano Deore MT510, 30tAlltricks bike-components Bike24
13Comandi cambioShimano Deore 12-spdAlltricks bike-components Bike24

16PneumaticiSurly Dirt Wizard 27.5 x 3.0Surly Dirt Wizard 27.5 x 3.0, 60 tpi, Tubeless ReadyAlltricks bike-components Bike24
17Ruote / cerchiWTB ST i40 TCS 2.0 27.5Alltricks bike-components Bike24
18MozziNovatec 15x110mmNovatec 15x110mm, 32hAlltricks bike-components Bike24

Non censito: Forcellino cambio.

Componenti del montaggio originale, con il modello esatto: controlla la bici nel caso sia stata modificata.Fonte ↗
