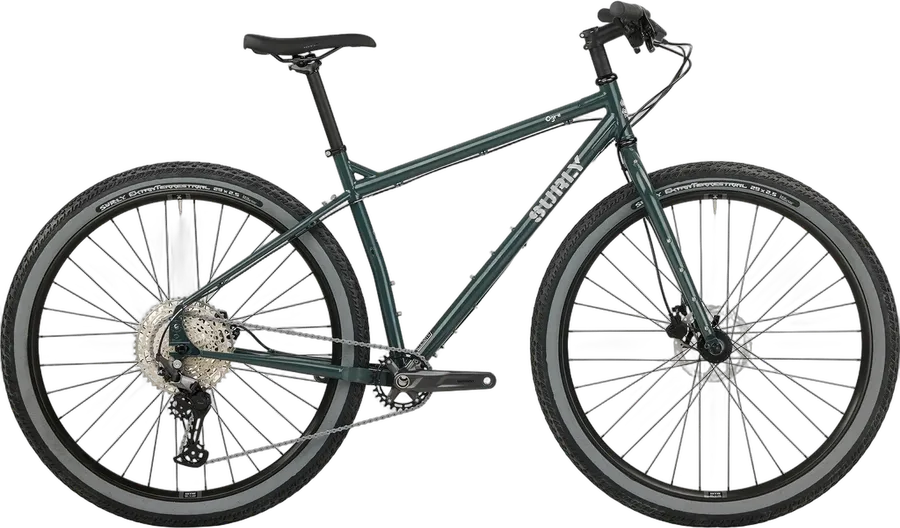

Surly Ogre 2026

gravel

Clicca su un ricambio per vedere la misura e dove comprarlo.

Distinta completa

01Telaio4130 Chromoly4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
02Movimento centraleBSA 73 mm (filettato)BSA 73mm (fileté) · 73mm threaded (1.37" x 24TPI)Alltricks bike-components Bike24
03Serie sterzoEC34 | EC34EC34/28.6 | EC34/30 · Sup. EC34 — Inf. EC34 · Haut : EC34/28.6 · Bas : EC34/30Alltricks bike-components Bike24
04Forcella4130 ChromolyA2C 445mm · déport 45mm · pivot Ø28.6mm (1-1/8") · 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
05ReggisellaØ27,2 mmØ27.2mmAlltricks bike-components Bike24
06Collarino reggisellaØ30,0 mmØ30mmAlltricks bike-components Bike24
07Perno passante anterioreSgancio rapido 100 mm10x100 · 10 x 100mmAlltricks bike-components Bike24
08Perno passante posteriore12 × 142 mm12x142 · 12 x 142mm or 12 x 148mm (axle included) · Écartement : "Gnot-Boost" 145mmAlltricks bike-components Bike24

09CatenaKMC X12 EPT Anti-RustAlltricks bike-components Bike24
10CassettaShimano Deore M6100Shimano Deore M6100, 10-51t, 12spdAlltricks bike-components Bike24
11Deragliatore posterioreShimano Deore M6100 SGSAlltricks bike-components Bike24
12GuarnituraShimano MT511Shimano MT511, 30TAlltricks bike-components Bike24
13Comandi cambioShimano Deore M6100Alltricks bike-components Bike24

14FreniTektro HD-M275 OR Tektro HD-M3120Tektro HD-M275 OR Tektro HD-M3120, 2 PistonAlltricks bike-components Bike24
15Dischi frenoTektro 160/160Tektro 160/160, 6-BoltAlltricks bike-components Bike24

16PneumaticiSurly ExtraTerrestrial 29 x 2.5 60tpiSurly ExtraTerrestrial 29 x 2.5 60tpi, Tubeless Ready (Slate wall). Tubes installed, WTB TCS sealant included.Alltricks bike-components Bike24
17Ruote / cerchiWTB ST i30 29WTB ST i30 29, TCS 2.0, 32hAlltricks bike-components Bike24
18MozziNovatec QR 9 x 100mmNovatec QR 9 x 100mm, 32h, 6-BoltAlltricks bike-components Bike24

Non censito: Forcellino cambio.

Componenti del montaggio originale, con il modello esatto: controlla la bici nel caso sia stata modificata.Fonte ↗
