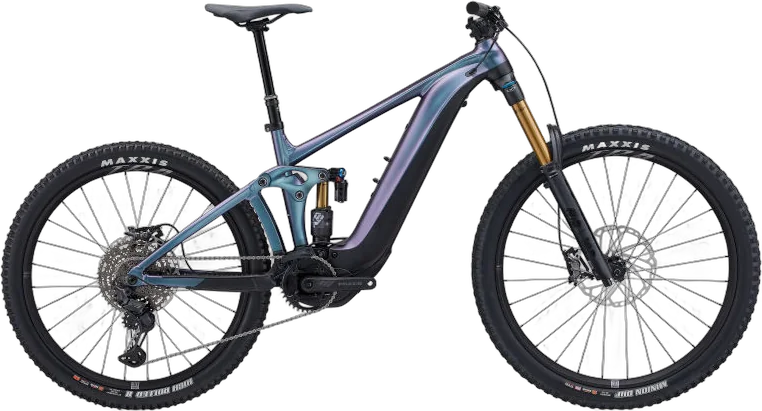

Giant Reign E+ 1 2024

MTBvolledig geveerd

Klik op een onderdeel om de maat te zien en waar je het koopt.

Volledige onderdelenlijst

01FrameALUXX SL-grade aluminumALUXX SL-grade aluminum, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, 'Boost' 148x12mm, Universal Derailleur Hanger
02VoorvorkFox 38 Float Factory GRIP 2 Air 170 matt black 1111-38FLOA-0024
03Achterschokbreker205 × 62,5 mm Trunnion205 × 62.5 mm · Fox X2 Factory, EVOL Large Volume sleeve, 205x62.5mm Trunnion mount, custom tuned, recommended sag: 30%Mantel Alltricks bike-components Bike24
04ZadelpenTranz-X Rad+ dropperTranz-X Rad+ dropper, 30,9mm, 30mm travel adjustable (S:120-150mm, M:140-170mm, L/XL:170-200mm)

05KettingShimano CN-LG500Shimano LinkGlide, CN-LG500Mantel Alltricks bike-components Bike24
06CassetteShimano CS-LG400Shimano Cues LinkGlide, CS-LG400-11, 11-50T, 11-speedMantel Alltricks bike-components Bike24
07AchterderailleurShimano XT LinkGlide 11-speedShimano XT LinkGlide 11-speed, Shadow+Mantel Alltricks bike-components Bike24
08VoorderailleurMRP HD2 co-moulded chain guideMantel Alltricks bike-components Bike24
09CrankstelPraxis N.W. 36T Cold Forged 4130 premium steel Praxis e-HD forged crankarm set (S/M:160mmPraxis N.W. 36T Cold Forged 4130 premium steel Praxis e-HD forged crankarm set (S/M:160mm, L/XL:165mm)Mantel Alltricks bike-components Bike24
10ShiftersGiant RideControl Ergo3Giant RideControl Ergo3, grip integrated remoteMantel Alltricks bike-components Bike24

11RemmenShimano BR-8120Shimano XT, BR-8120, 4-piston, hydraulic disc, RT66, 220mmMantel Alltricks bike-components Bike24

12BandenMaxxis Minion DHF 29x2.6 foldableMaxxis Minion DHF 29x2.6 foldable, Tubeless, EXO+, 3C MaxxTerra[F] Maxxis High Roller II 27.5x2.5 foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound [R]Mantel Alltricks bike-components Bike24
13Wielen / velgenE-TRA Hookless Tubeless ready Alloy 29 [F] / 27.5 [R]E-TRA Hookless Tubeless ready Alloy 29 [F] / 27.5 [R], 30mm inner widthMantel Alltricks bike-components Bike24
14NavenE-TRA MTB Alloy HubE-TRA MTB Alloy Hub, 6 Bolt, 110x15 [F] / 148x12 Shimano HG Drive Body Pawl Driver (3 Pawl 30T) Thru-axle [R]Mantel Alltricks bike-components Bike24

15StuurGiant Contact TrailGiant Contact Trail, 35x800mmMantel Alltricks bike-components Bike24
16StuurpenGiant Contact SL 35Mantel Alltricks bike-components Bike24
17Handvatten / stuurlintGiant Tactal Pro-EGiant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL)Mantel Alltricks bike-components Bike24
18ZadelGiant Romero TrailMantel Alltricks bike-components Bike24
19PedalenFlat pedalMantel Alltricks bike-components Bike24

20Motor (e-bike)Giant SyncDrive Pro2 85NmGiant SyncDrive Pro2 85Nm, PedalPlus 6-Sensor technologyMantel Alltricks bike-components Bike24
21Display / bediening (e-bike)Giant RideControl GOGiant RideControl GO, frame integrated LED consoleOptional wireless ANT+ displayMantel Alltricks bike-components Bike24

Niet opgenomen: Trapas, Balhoofd, Scharnierlagers van het frame, Zadelpenklem, Derailleurpad.

Onderdelen van de originele opbouw, met hun exacte model: controleer de fiets voor het geval hij is aangepast.Bron ↗
