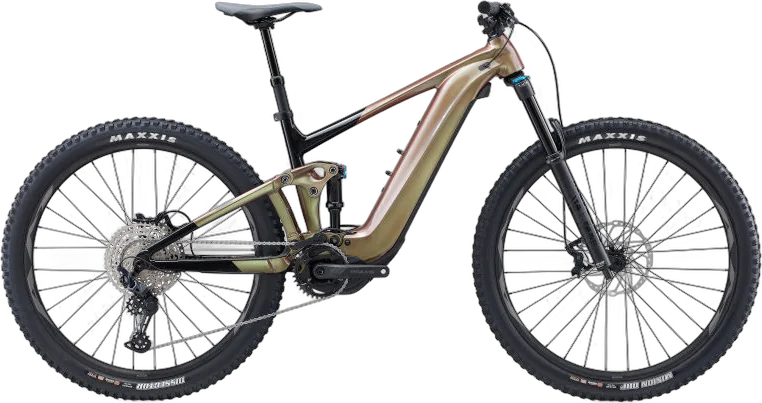

Giant Trance X E+ 2 2023

MTBvolledig geveerd

Klik op een onderdeel om de maat te zien en waar je het koopt.

Volledige onderdelenlijst

01FrameALUXX SL-grade AluminumALUXX SL-grade Aluminum, Advanced Forged Composite linkage, 140mm Maestro Suspension System, 'Boost' 148x12 UDH rear axle, Giant EnergyPak Plus Range Extender Compatible
02VoorvorkFox 36 Float Rhythm E-TunedFox 36 Float Rhythm E-Tuned, 29er, 150mm travel, 44mm offset, Grip Damper, Sweep adjust, Boost 110x15QR
03Achterschokbreker185 × 52,5 mm Trunnion185 × 52.5 mm · Fox Float DPS Performance, EVOL Large Volume sleeve, 3-position Lever, 185x52.5mm Trunnion mount, custom tuned, recommended sag: 30%Mantel Alltricks bike-components Bike24
04ZadelpenOBC Giant Contact Switch AT Travel adjustable 172D-CONTAC-0053 total length 315 T100-70MM / 172D-CONTAC-0052 total length 395 T140-110MM / 172D-CONTAC-0051 total length 470 T170 -140MM / 172D-CONTAC-0050 total length 530 T200-170MM

05KettingKMC e.12 TurboKMC e.12 Turbo, EcoProteq, e-bike optimizedMantel Alltricks bike-components Bike24
06CassetteShimano CS-M6100Shimano CS-M6100-12, 10-51T, 12-speedMantel Alltricks bike-components Bike24
07AchterderailleurShimano SLXShimano SLX, 12-speed, Shadow+Mantel Alltricks bike-components Bike24
08VoorderailleurMRP HD2 co-moulded chain guideMantel Alltricks bike-components Bike24
09CrankstelPraxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (Q-factor=168Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (Q-factor=168, S:160, M/L:165, XL:170)Mantel Alltricks bike-components Bike24
10ShiftersGiant RideControl Ergo3Giant RideControl Ergo3, grip integrated remoteMantel Alltricks bike-components Bike24

11RemmenShimano BR-M6120Shimano Deore, BR-M6120, 4-piston, hydraulic disc, 203mmMantel Alltricks bike-components Bike24

12BandenMaxxis Minion DHF 29x2.6 foldableMaxxis Minion DHF 29x2.6 foldable, Tubeless, EXO+, 3C MaxxTerra [F]Maxxis Dissector 29x2.6 Foldable, Tubeless, EXO+, 3C MaxxTerra [R]Mantel Alltricks bike-components Bike24
13Wielen / velgenGiant AM30Giant AM30, Tubeless ready, 30mm inner width, 29Mantel Alltricks bike-components Bike24
14NavenShimano MT410 BoostShimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axleMantel Alltricks bike-components Bike24

15StuurGiant Contact 35 TrailGiant Contact 35 Trail, 35x780mmMantel Alltricks bike-components Bike24
16StuurpenGiant Contact SL 35Mantel Alltricks bike-components Bike24
17Handvatten / stuurlintGiant Tactal Pro-EGiant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL)Mantel Alltricks bike-components Bike24
18ZadelGiant Romero EMantel Alltricks bike-components Bike24
19PedalenFlat pedalMantel Alltricks bike-components Bike24

20Motor (e-bike)SyncDrive Pro 2SyncDrive Pro 2, 85Nm, powered by YamahaMantel Alltricks bike-components Bike24
21Display / bediening (e-bike)Giant RideControl GOGiant RideControl GO, frame integrated LED console Optional wireless ANT+ displayMantel Alltricks bike-components Bike24

Niet opgenomen: Trapas, Balhoofd, Scharnierlagers van het frame, Zadelpenklem, Derailleurpad.

Onderdelen van de originele opbouw, met hun exacte model: controleer de fiets voor het geval hij is aangepast.Bron ↗
