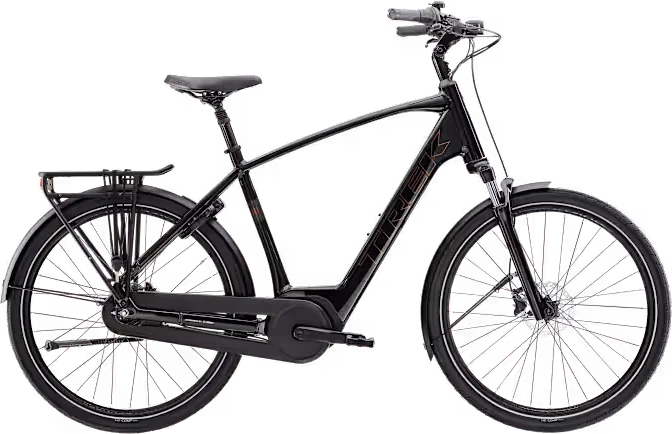

Trek District+ 2 2021

ciudad

Haz clic en una pieza para ver su medida y dónde comprarla.

Lista completa de piezas

01CuadroAlpha Smooth AluminumAlpha Smooth Aluminum, Bosch Compact PowerTube and belt drive, internal cable routing, post-mount disc
02Juego de direcciónStandardRoulements : Headset bearing 1.5'' (51mmX40mmX6.5mm) 36 degree
03HorquillaSR Suntour NVX30 DS Suspension forkSR Suntour NVX30 DS Suspension fork, 700c, 63mm Travel, 1.5'' Tapered 300mm steerer tube. Coil Spring, With Preload Adjuster, Post Mount, OLD: 100mm, 9mm open dropouts, Black Gloss
04Tija de sillínTige de selle à suspensionTige de selle à suspension, tête à 2 boulons, 31,6 x 300 mm, noir
05Abrazadera de sillínØ36,4 mmØ36.4mm · Bontrager Seatpost Collar 36.4 BlackAlltricks bike-components Bike24
06Patilla de cambioTrek Verve+/District+Trek Verve+/District+, Diamant Beryll/Mandara MY23 RIB Chaintensioner, Non Drive Side. Black

07CadenaShimano CN-HG40Shimano CN-HG40 8spAlltricks bike-components Bike24
08CassetteShimano 18TShimano 18T, for Internal Gear HubAlltricks bike-components Bike24
09BielasProwheel Crankarms for Bosch Gen3 MotorProwheel Crankarms for Bosch Gen3 Motor, 170mm, BlackAlltricks bike-components Bike24
10Plato(s)Étoile en aluminium et plateau 38 dts en acier Prowheel pour Bosch G3. 4 brasÉtoile en aluminium et plateau 38 dts en acier Prowheel pour Bosch G3. 4 bras, BCD 104 mm, noir anodiséAlltricks bike-components Bike24

11Discos de frenoShimano SM-RT10Shimano Altus Rotor. Item Number: SM-RT10-S, 160mm, Center Lock, For Resin Pad only. (Visit si.shimano.com for compatibility, manuals and exploded views)Alltricks bike-components Bike24

12NeumáticosBontrager H2 CompBontrager H2 Comp, wire bead, 30 tpi, 27.5x2.00''Alltricks bike-components Bike24
13Ruedas / llantasBontrager Connection RimBontrager Connection Rim, 27.5'' 32h Disc, Presta, BlackAlltricks bike-components Bike24
14BujesFront HubFront Hub, Alloy, Disc Centerlock, 100mm Thru Axle, 32H, 3/8'' x 145mm Axle, BlackAlltricks bike-components Bike24

15ManillarLee Chi HandlebarLee Chi Handlebar, 6061 Aluminum, 31.8mm Clamp, 25mm Rise, 44 Degree Backsweep, 630mm Wide, Anodized BlackAlltricks bike-components Bike24
16PotenciaBontrager Adjustable Threadless StemBontrager Adjustable Threadless Stem, 85mm Reach, 31.8mm, Blender Compatible, BlackAlltricks bike-components Bike24
17Puños / cinta de manillarHerrmans Ergonomic GripHerrmans Ergonomic Grip, 90mm for right hand side, TPE, Dual Density, With Black Lock Ring, For 22mm ID, BlackAlltricks bike-components Bike24
18SillínBontrager Boulevard Saddle. Steel Rails. Width: 222mmAlltricks bike-components Bike24
19PedalesPaire de pédales VP PE-857. Avec catadioptres. NoirAlltricks bike-components Bike24

20Motor (eléctrica)Bosch Smart System (BES3) Drive UnitBosch Smart System (BES3) Drive Unit, Active Line Plus, BOSCH P/N: EB11.100.008 BDU3340Alltricks bike-components Bike24
21Batería (eléctrica)BoschBosch, Compact PowerTube 400Wh Battery, BOSCH P/N: EB12.100.048Alltricks bike-components Bike24

No registrado: Pedalier.

Piezas del montaje original, con su modelo exacto: revisa la bici por si ha sido modificada.Fuente ↗

Manuales y esquemas disponibles en la página del fabricante.
